Well, It’s been quite some time since I wrote Part 1. I wanted to focus on different topics and then come back to certificates but Christmas holidays came and also I’ve been involved in few interesting and quite demanding projects and could not dedicate much on vCenter Self-Signed Certificates Part 2. Although I wrote most of  the”painful” portion of the process, I still think that Microsoft CA way requires proper attention.In this part should to be much shorter than Part 1 but let’s see how it goes.

So first things first. To go ahead in process we will need to go through couple of steps :

  • Creating the OpenSSL configuration files
  • Creating the certificate requests
  • Obtaining the certificates
  • Implementing the certificates

Looks familiar, isn’t it ? Some of those steps we have done in Part 1, and of course we going to reuse what  we already have. Before going ahead let’s make check point of what we need and what we have .

  • Version we talk about here is vSphere 5.5
  • All components for which you will be installing certificates has been pre-installed
  • Microsoft Active Directory Certificate services are running on your Domain Controller or other Server in your environment
  • You have reviewed the Key Usage Extensions for the VMwareCertificate (Web Server) template on your Certificate Authority server and made sure it has digitalSignature,  keyEncipherment, and dataEncipherment enabled for certificate generation.If you do not have this one, follow this article to set-it up.
  •  OpenSSL v0.9.8 has been has been installed. I personally would use OpenSSL which come with vCenter  “C:\Program Files\VMware\Infrastructure\Inventory Service\bin“. If you’re not sure that it is the version you need, just open it in terminal and write “openssl.exe  version”
  • You are not using wild card certificates. Each certificate needs to be unique in vSphere 5.x and as a result wild card certificates are not supported.

vCenter has six components  components that utilize certificates to encrypt communication.They can be installed on same server or separate server but I’m going to follow “all-in-one” model. Let’s begin, following chronologically steps I wrote few lines above

Creating the OpenSSL configuration files

OpenSSL config file creation is relatively easy. I have decried this in great detail in Part 1 but here I have to highlight specific value which will apply for particular  component /service. When you have file created make sure you have specify correct organizationalUnitName. This should be unique for components

organizationalUnitNamevCenterUniqueServer
vCenterInventoryService
vCenterSSO
vCenterServer
vCenterWebClient
vCenterLogBrowser
VMwareUpdateManager
vSphereAutoDeploy

Creating the certificate requests

Now, since I have configured OpenSSL , I need to generate a certificate request for each  component. Folders for all components has been created with component SSL config files .Generation is easy, open Command Prompt get to OpenSSL folder and use bellow commands for each service.

#Certificate request to export the private key ### Make sure you have proper D:\temp\<component> directory
openssl req -new -nodes -out d:\temp\vCenterInventoryService\rui.csr -keyout d:\temp\vCenterInventoryService\rui-orig.key -config d:\temp\vCenterInventoryService\InventoryService.cfg
#Merge key to the proper RSA format###Make sure you have proper D:\temp\<component> directory
openssl rsa -in d:\temp\vCenterInventoryService\rui-orig.key -out d:\temp\vCenterInventoryService\rui.key

Selection_034

Obtaining the certificates

Here comes the interesting part. Steps bellow need to be executed for all services.

Login to your Microsoft CA Web Interface.It should be something like this http://servername/CertSrv

Selection_035

Click “Request Certificate” and then “Advanced Certificate Request”

Selection_036

Click here “Submit a `certificate request by using  base-64-encoded CMC or PKCS #10 file, or submit a renewal request by using a base-64-encoded PKCS #7

Selection_036

Open rui.csr, generated in previous steps, in text editor and paste it everything in “Saved Request” .Select “VMware Certificate” certificate template from drop down list or the template you have prepared .Once ready “Submit” it .

Selection_042

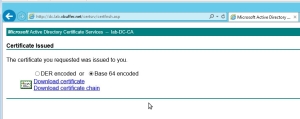

Select “Base 64 encoded ” and download certificate .Save it as rui.crt in same directory where rest of files for this service are, in this case D:\temp\<service>

Selection_040Before continue  we let’s verify certificate key usages . Open rui.crt file go to Details  >Key Usage. Do you see digitalSignature,keyEncipherment,and dataEncipherment?

Selection_043

Alright, seems all fine. Let’s go ahead and download certificate chain, so select “Download a CA certificate, certificate chain or CR

Selection_052

Select “Base 64 ” and “Download CA Certificate chain” and save the file to folder where  certificates are D:\temp\

Selection_053

Double click on saved certificate chain and go to “Certificates” and Right-click the certificate listed and click All Actions > Export.

Selection_054

Select Base-64 encoded X.509 (.CER) click “Next” and save file in D:\temp\Root64.cer

Selection_045

So far so good , next step  is to generate PKCS#12 PFX for use with each one of the services.Creation is relatively easy  and require execution of only one line command in Command Prompt.Make sure you adjust all necessary parameters  for each service.

# Certificate password must be testpassword .Do not change this parameter
openssl pkcs12 -export -in d:\temp\vCenterInventoryService\rui.crt -inkey d:\temp\vCenterInventoryService\rui.key -certfile d:\temp\vCenterInventoryService\Root64.cer -name "rui" -passout pass:testpassword -out d:\temp\vCenterInventoryService\rui.pfx



#SSO service is special so following command should do the magic.Don't change certificate store password "changeme" and the key alias must be "ssoserver"
openssl pkcs12 -export -in d:\temp\sso\rui.crt -inkey d:\temp\sso\rui.key -certfile d:\temp\sso\Root64.cer -name "ssoserver" -passout pass:changeme -out d:\temp\sso\ssoserver.p12



If you really want you can check encoding with

openssl pkcs12 -in c:\certs\service\rui.pfx -info

Alright, we have got everything we need for implementing custom Microsft CA certificates. Now if you have your vCenter components on one server you can keep certificates in same folder or wherever you store them, but in case your vCenter components are installed across few servers, copy required files to each server. For the implementation we going to use same tools and steps as in Part 1. Key moment here is to verify sequence by creating a plan for implementation for each service with   SSL Automation Tool . Awesome functionality  😀 .

That’s it, pretty much. Path seems not quite short but at least exists and I hope it will save some of your time.

Got a question ? Write it in comments bellow.
